| ProductNo | MID-P14KO |

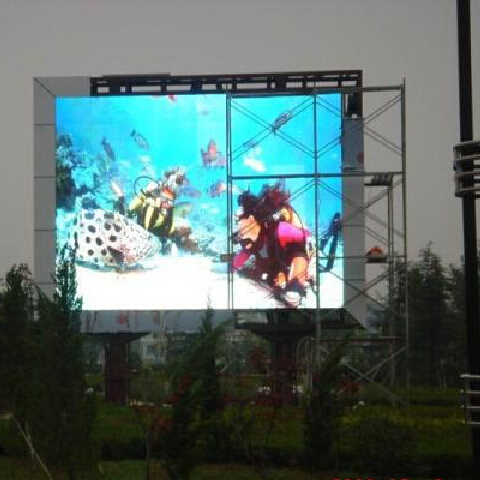

| ProductName | PH14 outdoor Full Colors |
| Pixel Pitch | 14mm |
| Pixel composing | 2R1G1B |
| Product List | Led Display Series |
Specifications as below :
Display and control feature | Structure feature | |||
Specification | Parameter | Specification | Parameter | |
Real Pixel Pitch | 14mm | Module size | 224mm*112mm | |
Pixel composing | 2R1G1B | Module resolution | 16dots*8dots | |
View Angle (H) | 120°(H)/ 60(V) | Display resolution | ||
LED package | DIP546 | Install mode | Wallmount, hung and stand structure | |
Type of Diode | Ellipse Shape | Working power | ||
Density | 5,102 | Specification | Parameter | |
Display color | 256*256*256 | Working voltage | AC 220v/380v±10% 47~64Hz | |
Whiteness brightness | 6500cd | Max power/sqm | 680W | |
Uneven brightness | +-5% | Average power/sqm | 170W | |
Brightness level | 128 grade | Short circuit protection | Yes | |
Refresh | 1000 Hz | Working environment | ||
Contrast | 2000 : 1 | Specification | Parameter | |
Control mode | synchronous | Environment | Outdoor | |
Display port | DVI | Working temperature | -10℃ ~40℃ | |
lifetime | 100,000 hours | Working Humidity | 35~85% | |
