| ProductNo | MID-P7KO |

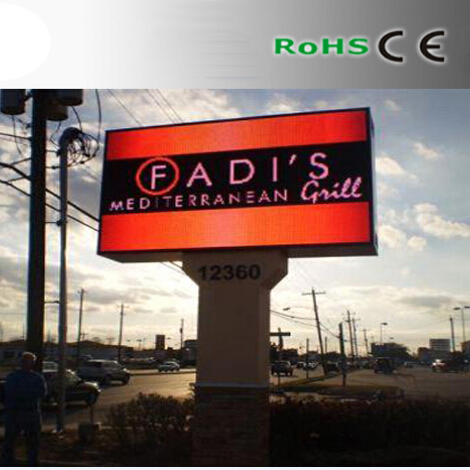

| ProductName | PH7 outdoor Full Colors |
| Pixel Pitch | 7mm |
| Pixel composing | 1R1G1B |
| Product List | Led Display Series |
Specifications as below :
Display and control feature | Structure feature | ||
Specification | Parameter | Specification | Parameter |
Pixel Pitch | 7 mm | Module size | 224 mm*112 mm |
Pixel composing | 1R1G1B | Display resolution/module | 32 dots*16 dots |
Wavelength (R) | 625±5 | Standard cabinet size | 672 mm*672 mm |
Wavelength (G) | 522±3 | Weight per sqm | 65 Kg/sqm |
Wavelength (B) | 465±5 | Protection classification | --- IP65 |
Wave Angle (H) | 140°(H)/ 70° | Install mode | Wallmount, hung and stand structure |
LED package | DIP246 | ||
Density | 20,408 | Working power | |
Display color | 256*256*256 | Specification | Parameter |
Whiteness brightness | ≥9000cd | Working voltage | AC 220v/380v±10% 50 Hz |
Brightness level | 128 grade | Max power/sqm | 900W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 350W/sqm |
Refresh | 400 Hz | Short circuit protection | Yes |
Driving method | 1/4 Constant Static current | ||
Control mode | synchronous | Working environment | |
Display port | DVI | Specification | Parameter |
Display mode | 1024*768 /1024*1024 | Environment | Outdoor |
Out of control | 1/10,000 ( scattered) | Working temperature | --40~50℃ |
lifetime | 100,000 hours | Working Humidity | 10~90% |
