| ProductNo | MID-P6KI |

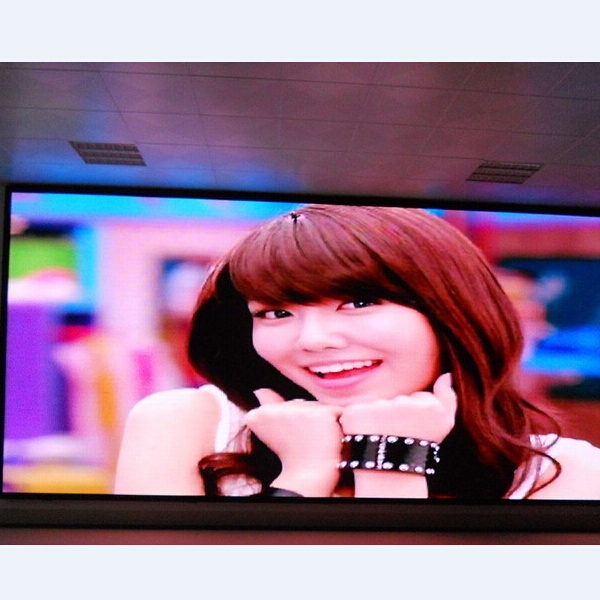

| ProductName | PH6 SMD3IN1 indoor Full Colors |
| Pixel Pitch | 6mm |
| Pixel composing | SMD3IN1 |
| Product List | Led Display Series |
Specifications as below :
Display and Control Feature | Structure Feature | ||
Specification | Parameter | Specification | Parameter |
Pixel Pitch | 6mm | Module size | 192mm*192mm |
Pixel composing | 1R1G1B | Display resolution/module | 32 dots*32 dots |
Wavelength (R) | 625±5 | Standard cabinet size | 960 mm*768mm |
Wavelength (G) | 522±3 | Weight per sqm | 45 Kg/sqm |
Wavelength (B) | 467±3 | Protection classification | --- |
Wave Angle (H) | 140°(H)/60°(V) | Install mode | Wallmount, hung and stand structure |
Led package | SMD 3IN1 | ||
Density | 27,777 | Working Power | |
Display color | 256*256*256 | Specification | Parameter |
Whiteness brightness | ≥1800cd | Working voltage | AC 220v/380v±10% 47~64Hz |
Brightness level | 128 grade | Max power/sqm | 1100W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 750W/sqm |
Refresh | 400 Hz | Short circuit protection | Yes |
Driving method | Constant driving 1/8 | ||
Control mode | synchronous | Working Environment | |
Display port | DVI | Specification | Parameter |
Display mode | 1024*768 1024*1024 | Environment | Indoor |
Out of control | 1/10,000 ( scattered) | Working temperature | --40~50℃ |
lifetime | 100,000 hours | Working Humidity | 10~90% |
