Chip of LED

Epistar

LED per pixel

SMD3IN1(SMD3528)

Resolution

17222

LED Number per/㎡

17222

Single Module Dimension/Pixel(W x H)

122mm*244mm

Single Cabinet Dimension/Pixel(W x H)

732mm*732mm

Cabinet Material

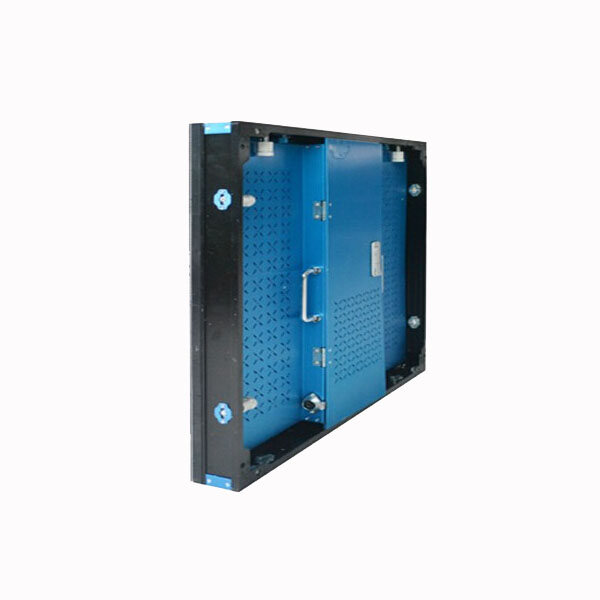

Slim Aluminum Hanging Rental  case

Cabinet  Weight

15.5

Cabinet Color

Black(standard),red,blue,yellow …for options, can be customized,logo customized

Driver IC

MBI5020

Power Supply

CL with CE

Best View Distancing

7.62-100m

Vertical Viewing Angle

120degree

Horizontal Viewing Angle

120degree

Brightness

≥2000

Brightness Adjustment

Manual, 256 level; Auto, 8 levels

Grey Scale

16,384 Shades Per Color

Operating Temperature

–30℃~+60℃

Input Voltage

AC110V/220V/380V±10%

Input Power Frequency

50/60Hz

Screen Power Consumption

450W/SQM(Max)

Refresh Rate

40~4000HZ

Frame Rate

 > 60 frames/sec

Defect Rate

≤0.0002

Data Transfer Method

RJ45

Humidity

0--95%

Water proof

IP33

Way of Drive

1/8 constant driving

MTBF

> 100,000 hours

Color Temperature

6500K±500

Color

281Trillion

Support Mode

VGA, 800*800 display synchronically with the computer, correspondence dot to dot

Control Distance

120 m (no repeating); Optical fiber transmission: 500m- 10km

Systems Operating Platform

WINDOWS(WIN95、WIN98、WIN2000, WINXP), with a friendly UI, and interfaces for secondary development.

Standard

CE,ROHS
