Pixel composing

2R1G1B

module size

320*160mm

Pixel(W X H)

32*16dots

led package

DIP246

Brightness

3200cd

Module power consumption

19W

Module Power supply

5V

Signal interface

HUB12

Driving Way

1/4 scan

Cable specification

Common 16P

System Function:

Supports full range of monochrome control card.

led module that according to the control card background function,

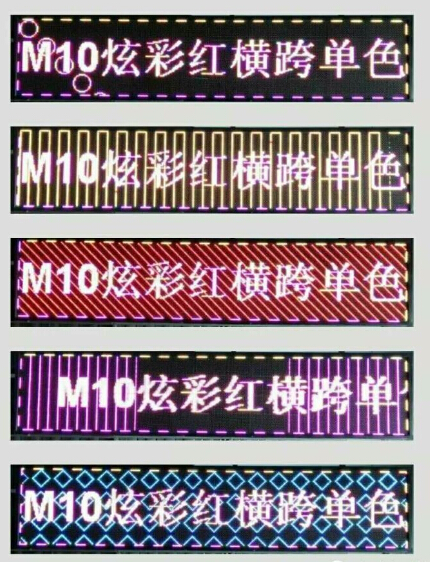

Automatic cycle Red、 Green、Blue、Yellow、purple , Five color background color .
