MP10炫彩屏
添加时间: 2016-1-19 浏览次数:

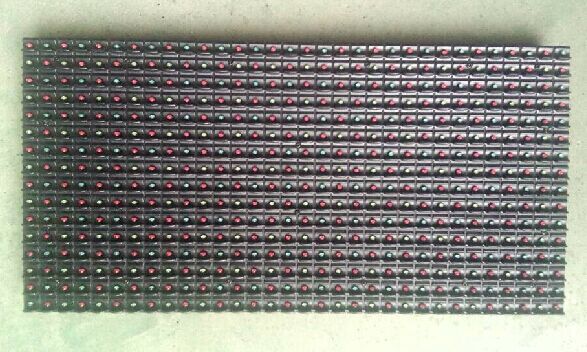

户外MP10炫彩屏技术参数:
Parameters | Detail |
Pixel composing | 2R1G1B |
module size | 320*160mm |
Pixel(W X H) | 32*16dots |
led package | DIP246 |
Brightness | 3200cd |
Module power consumption | 19W |
Module Power supply | 5V |
Signal interface | HUB12 |
Driving Way | 1/4 scan |
Cable specification | Common 16P |
System Function: Supports full range of monochrome control card. led module that according to the control card background function, Automatic cycle Red、 Green、Blue、Yellow、 purple , Five color background color . |
