| ProductNo | MID-P4KIM |

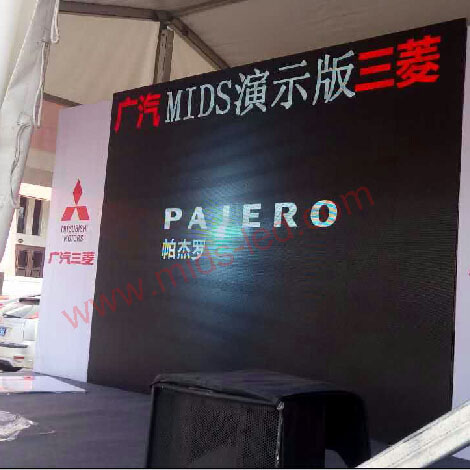

| ProductName | Smart Led Display PH4 SMD2121(black) indoor Die-cast Aluminum |
| Pixel Pitch | 4mm |
| Pixel composing | SMD3IN1 |
| Product List | Smart led display series |
Specifications as below :
Display and Control Feature | Structure Feature | ||
Specification | Parameter | Specification | Parameter |
Pixel Pitch | 4mm | Module size | 256mm*256mm |
Pixel composing | 1R1G1B | Display resolution/module | 64 dots*64dots |
Wavelength (R) | 625±5 | Standard cabinet size | 512mm*512mm |
Wavelength (G) | 522±3 | Weight per sqm | 45 Kg/sqm |
Wavelength (B) | 467±3 | Protection classification | --- |
Wave Angle (H) | 140°(H)/60°(V) | Install mode | Wallmount, hung and stand structure |
Led package | SMD 3IN1(SMD2121) | ||
Density | 62500 | Working Power | |
Display color | 256*256*256 | Specification | Parameter |
Whiteness brightness | ≥1800cd | Working voltage | AC 220v/380v±10% 47~64Hz |
Brightness level | 128 grade | Max power/sqm | 1100W/sqm |
Changing frame frequency | 60 Hz | Average power/sqm | 750W/sqm |
Refresh | 400 Hz | Short circuit protection | Yes |
Driving method | 1/16 Constant driving | ||
Control mode | synchronous | Working Environment | |
Display port | DVI | Specification | Parameter |
Display mode | 1024*768 1024*1024 | Environment | Indoor |
Out of control | 1/10,000 ( scattered) | Working temperature | --20~50℃ |
lifetime | 100,000 hours | Working Humidity | 10~90% |
